Description
• Inlet connection: 1/2″ BSP female (on wash gun)
• Maximum temperature: 50 ºC
• Max operating pressure: 12 bar

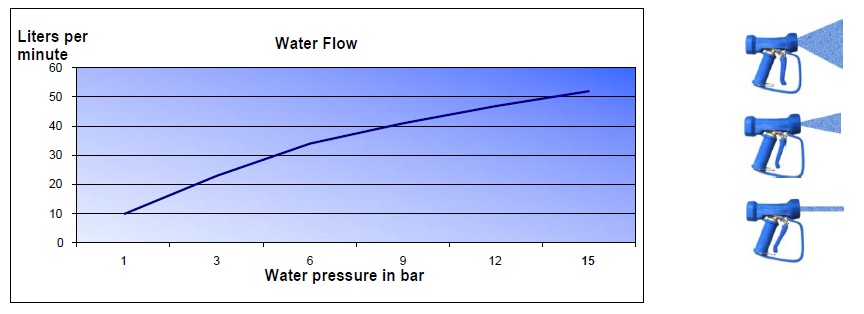

• Flow rate: 28 l/min @ 5 bar
• Body material: Plastic PA66
• Trigger, pusher and trigger guard 304 Stainless steel
• Nozzle shaft and spring Stainless steel 316 stainless steel
• Rubber covering: EPDM
• Seals: EPDM seals (FDA)
• Brass & seals EPDM (FDA)
This light weight washdown gun is the perfect alternative if a brass body washdown gun cannot be used. The EPDM rubber covers are durable and protect both the pistol and its surroundings from mechanical and/or thermal damage. They also provide a comfortable grip
and are highly resistant to animal fat, including chicken and goose fat. A newer version with a trigger cover guard is also available.
Datasheet coming
